[This is preliminary documentation and subject to change.]
Data object graph framework
Introduction
Modern client-server applications manipulate complex graphs of data objects. For example a contract with its positions and optional amendments is represented as a hierarchy of data information. These graphs are transferred from and to the client application. The user views data edits it and commits the changes to the database through server functions. The patterns commonly found in the literature describe thoroughly how to implement simple data transfer objects DTO, but ignore the complexity of how graphs of objects should efficiently be transmitted between server and client components. The intended audience is software developers interested in using DOG or implementing their own variant.Further information: pmMDA dog

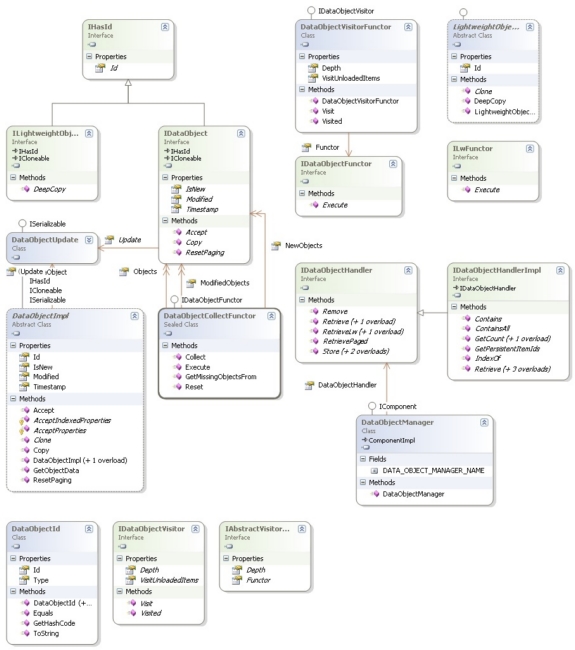

Design diagram
PmMda.Net.Dog.Persistence
PmMda.Net.Dog.Reference
PmMda.Net.Dog.Paging
PmMda.Net.Dog.Remoting
PmMda.Net.Dog.Updates
Classes
| Class | Description |
|---|---|
| DataObjectCollectFunctor | This functor collects all visited data objects. |
| DataObjectId | The data object identifier class defines the identifier of any data object. |
| DataObjectImpl | Base class for self-made data objects. |
| DataObjectManager | The data object manager defines a coherent set of handlers responsible for providing all services to manipulate data objects and their lightweight representations. |
| DataObjectVisitorFunctor | This visitor forwards the visited data objects to a specified IDataObjectFunctor. |
| IndexedPropertyChangedEventArgs | Provides data for the IndexedPropertyChanged event. |
| LightweightObjectImpl | Base class for all lightweight objects. |
| MyDo | Summary description for MyDo. |
| PrimitivePropertyChangedEventArgs | Provides data for the PrimitivePropertyChanged event. |
| PropertyChangedEventArgs | Provides data for the PropertyChanged events. |
| PropertyChangingEventArgs | Provides data for the PropertyChanging events. |
| PropertyNameConverter | Helper class that can convert an identifier to different representations such as a conversion from singular to plural. |
| SinglePropertyChangedEventArgs | Provides data for the SinglePropertyChanged event. |
Interfaces
| Interface | Description |
|---|---|
| IAbstractVisitorFunctor | The abstract visitor functor defines the interface of a visitor which applies a functor to each visited data object. |
| IDataObject | Interface for all data objects. |
| IDataObjectFunctor | An IDataObjectFunctor is an object oriented representation of a function which has a data objects as argument. |
| IDataObjectHandler | Interface to retrieve and store data objects. |
| IDataObjectHandlerImpl | Extended IDataObjectHandler which contains methods which are used within the pmMDA framework to reload paged items. |
| IDataObjectVisitor | The IDataObjectVisitor interface defines the visitor pattern for the graph of all data objects. |
| IHasId | The IHasId interface defines the characteristic of any object possessing an identifier. |
| ILightweightObject | Interface for all lightweight objects. |
| ILwFunctor | The functor defines the interface of a functor object, meaning the object oriented representation of a function. |
Delegates
| Delegate | Description |
|---|---|
| IndexedPropertyChangedEventHandler | Represents the method that will handle the IndexedPropertyChanged event. |
| PrimitivePropertyChangedEventHandler | Represents the method that will handle the PrimitivePropertyChanged event. |
| PropertyChangedEventHandler | Represents the method that will handle a PropertyChanged event. |
| PropertyChangingEventHandler | Represents the method that will handle a PropertyChanging event. |
| SinglePropertyChangedEventHandler | Represents the method that will handle the SinglePropertyChanged event. |
Enumerations
| Enumeration | Description |
|---|---|
| IndexedPropertyAction | Specifies whether the items of an indexed property were added, inserted, removed or replaced. |
